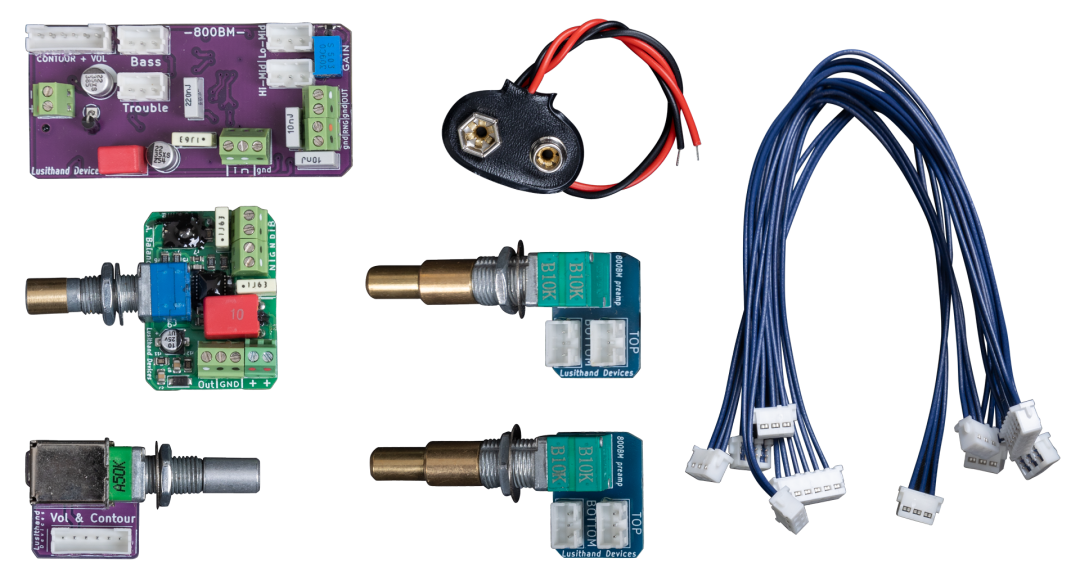

Lusithand 800BMF
The
800BMF is a full version of the 800BM preamp; it borrows the EQ section of the famous GK800RB amplifier and squeezes it into an onboard preamp, this time with a built-in Contour switch, on the Volume Control, for an increase in sound options.
The 800BMF differs from the 800BM by having an Active Blend and Master Volume control, making this a fully featured preamp.(not suitable for active/passive operation).
This tone stack has a very defined and clear tone to it. The EQ controls allow for some serious high-frequency power and a very deep bottom end, just like the amplifier it’s based on, allowing you to explore different tones directly from your instrument.
The Hi-mid and Treble controls are highly interactive; the same goes for the Lo-Mid and Bass controls and the overall sound is always very “cut through” and clear sounding.
The built-in Contour function works wonders at giving an instant new sound profile (think slap-switch), and it’s as easy as pulling up on the volume control to activate it and pushing down to deactivate it.
For a stripped-down version of the 800BMF, check the 800BM.
Active controls:
• Stacked Bass/Treble
• Stacked Hi-mid/Lo-mid
• Volume with Contour switch (push-pull)
• Active Balance
• Voltage: 9 to 27VDC
• Current Draw: +- 5mAh (9v)
• Treble: Boost and cut around 4khz
• Hi- Mid: Boost and cut at around 1khz
• Bass: Boost and cut at around 60Hz
• Lo- Mid: Boost and cut at around 250Hz
• Volume with built-in Contour switch (push-pull): EQ pre-shape (V)
• Active Balance board: active blend control
• without knobs
• Potentiometers: x2 dual concentric, (10mm bushing height, 8mm ⌀) top = 6mm ⌀; bottom = 8mm ⌀
x1 Blend_6mm ⌀ (use with 6.35mm/6.4mm knobs) x1 Volume (with contour switch)_6.35mm ⌀ (use with 6.35mm/6.4mm knobs)
All our preamps are solderless!
