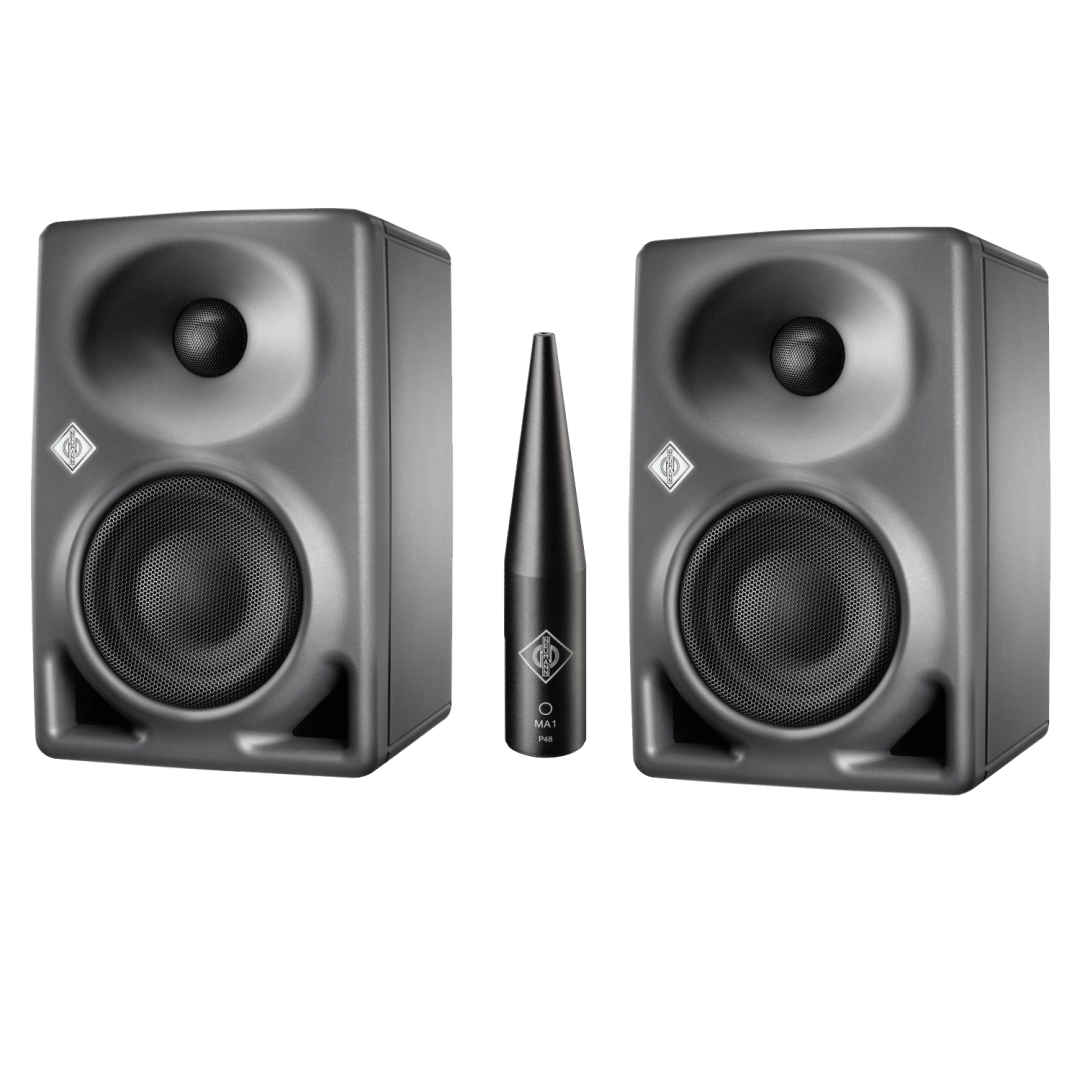

Neumann Monitor Alignment Kit 2

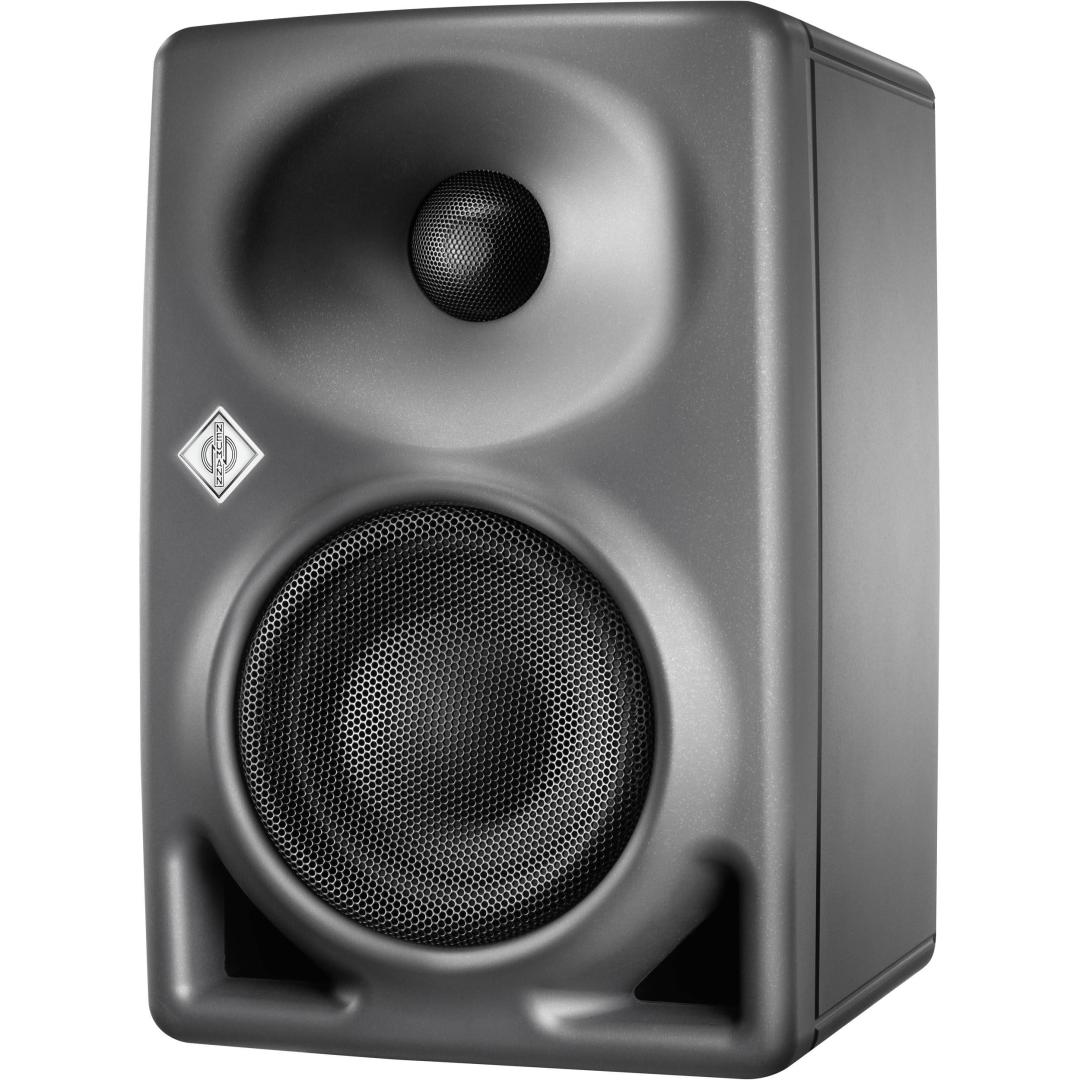

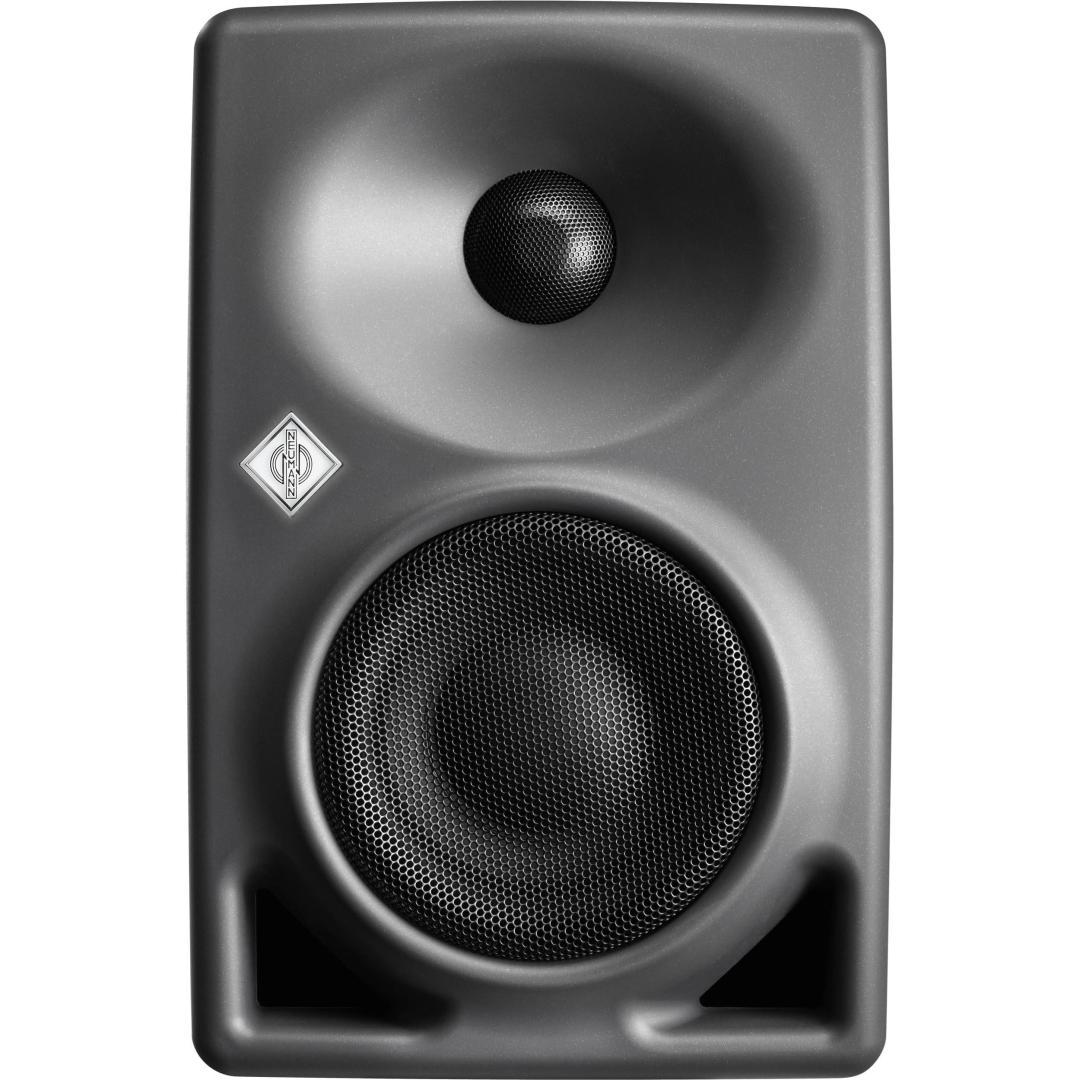

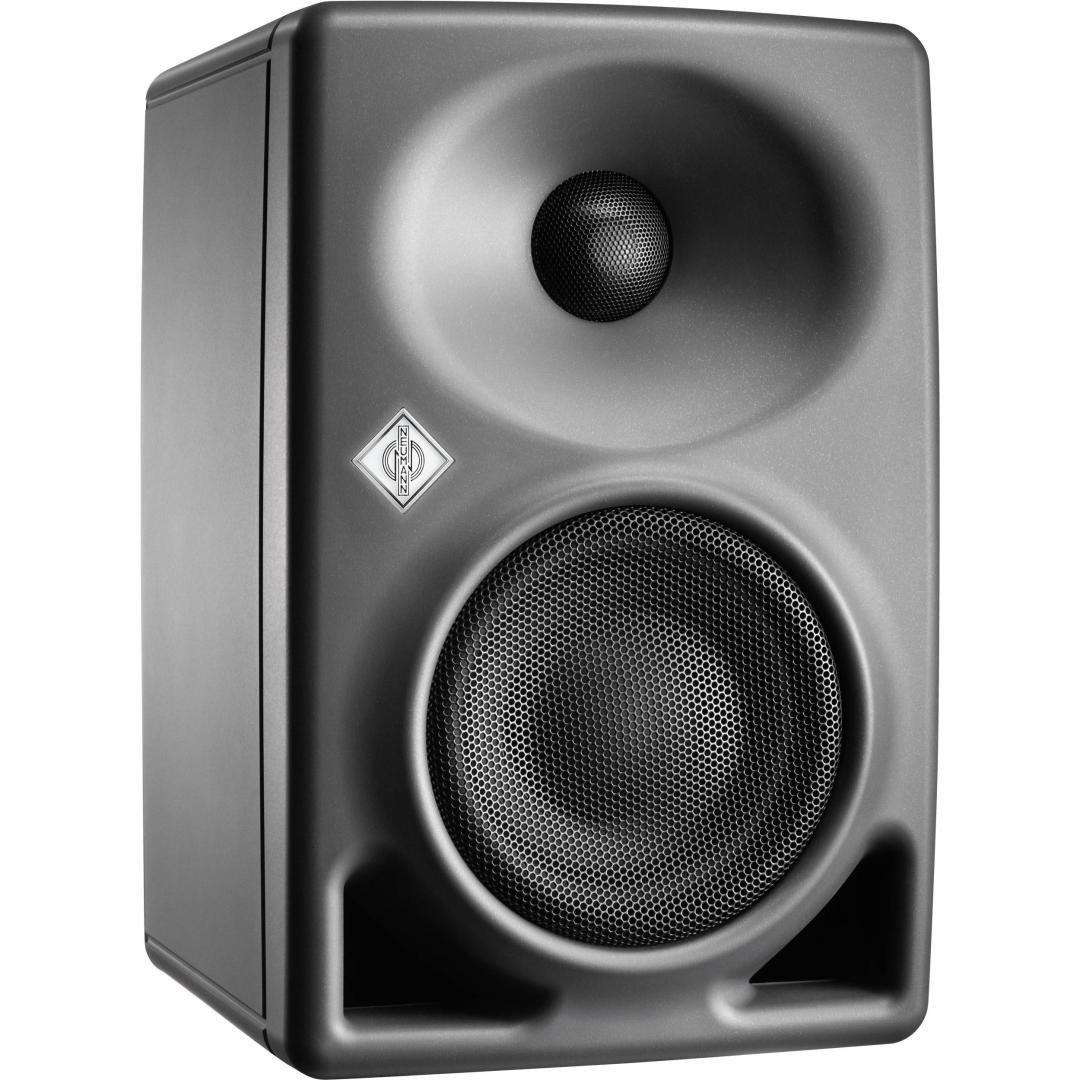

2 x Neumann KH 80 DSP
• Studio Monitor with DSP
• 24-Bit 48 kHz signal processing
• Equipped with: 4" woofer 1" tweeter
• Frequency response (+/- 3 dB): 57 Hz - 21 kHz
• Maximum output level: 108.8 dB SPL
• Power: 90 W woofer and 50 W tweeter

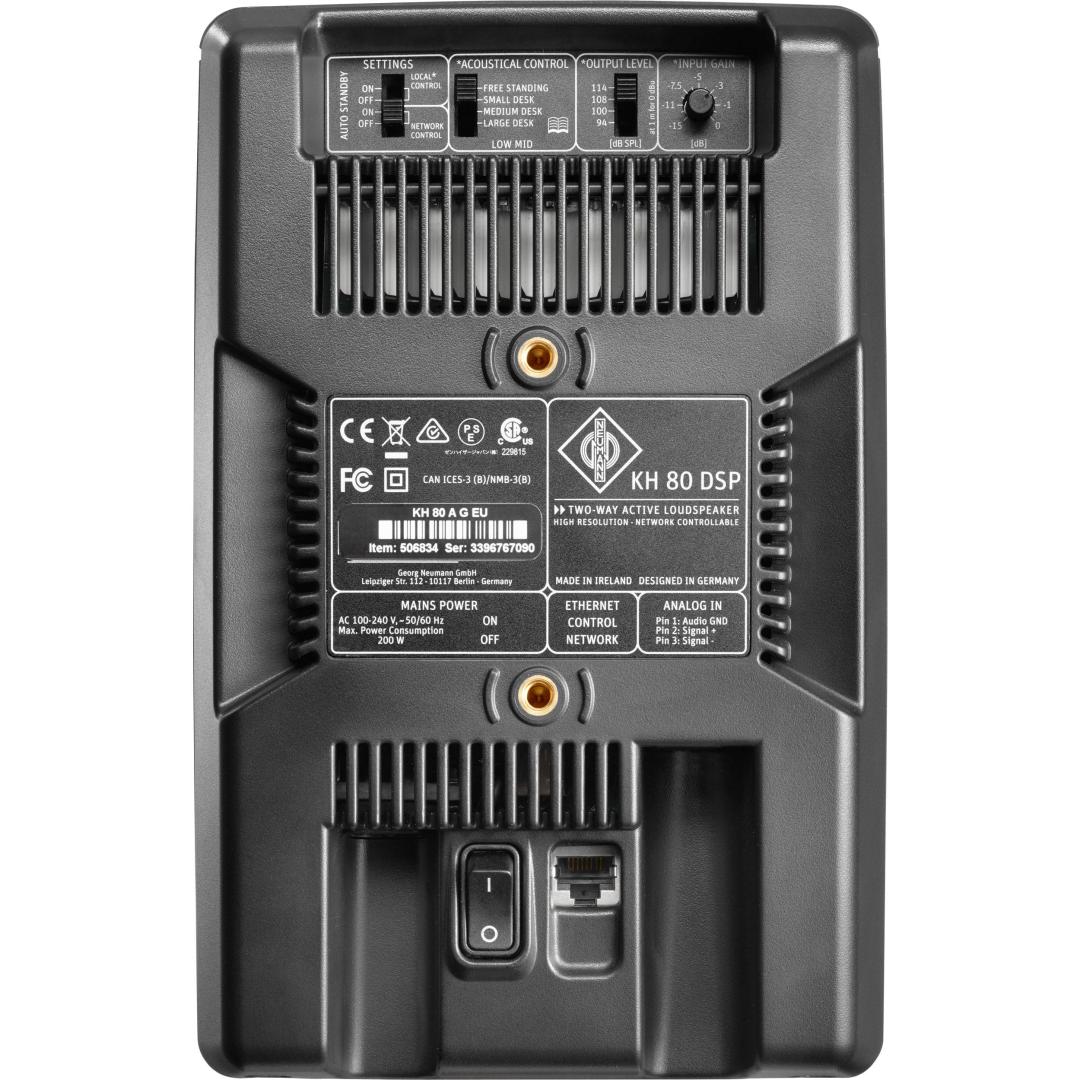

• Control panel for standby and acoustical control
• Electronic peak /thermo limiter protection circuit separately for woofer and tweeter
• Input / output level control
• Linear phase DSP crossover 8th order
• External 4-position acoustical controls for low-mid or internal automatic or manual room correction
• (Precision Alignment) with max. 8 IIR filters plus low / high shelf global filter balance
• 70-ms delay function for time and lipsync settings
• Self-generated noise <20 dB (A) at 10 cm
• Input: balanced XLR, magnetically shielded
• Network connection
• 2 x M6 threaded inserts for stands/mounts
• Dimensions (H x W x D): 233 x 154 x 194 mm
• Weight: 3.5 kg

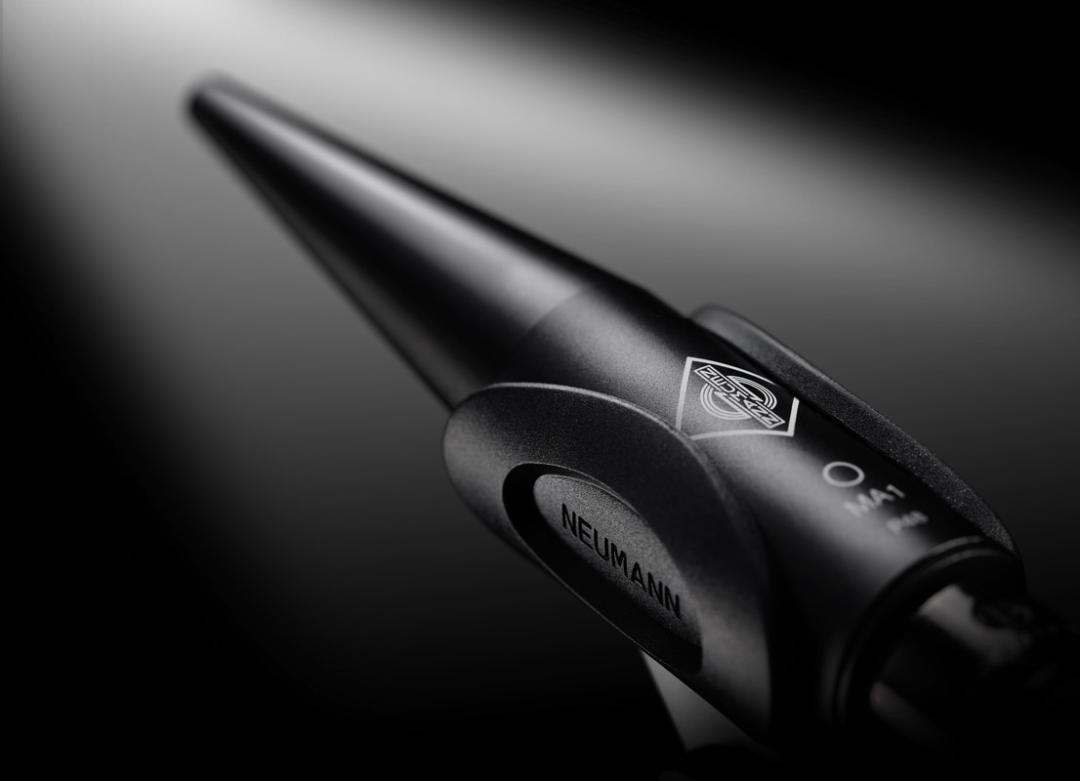

Neumann MA 1
• Automatic Monitor Alignment
• Calibration system for stereo setups with Neumann KH 80 DSP and all analog
• (non-DSP-based) Neumann monitors in connection with the KH 750 DSP subwoofer
• Calibration algorithms developed jointly with Fraunhofer IIS
• Individually calibrated measurement microphone
• Space-adaptive target curve
• Phase and amplitude optimization for analog Neumann monitors
• Frequency range: 20 - 20000 Hz
• Directional characteristic: Omnidirectional
• For Mac and PC
• Dimensions (length x diameter): 117 x 23 mm
• Weight: 37 g
• System requirements: Windows 10 (64 bit) or macOS 10.13 / 10.14 / 10.15, audio interface with balanced,
• analog input with 48 V phantom power and 2 balanced, analog outputs or digital AES3 output
• (only KH 750 DSP), ASIO driver (for Windows ), Network switch
