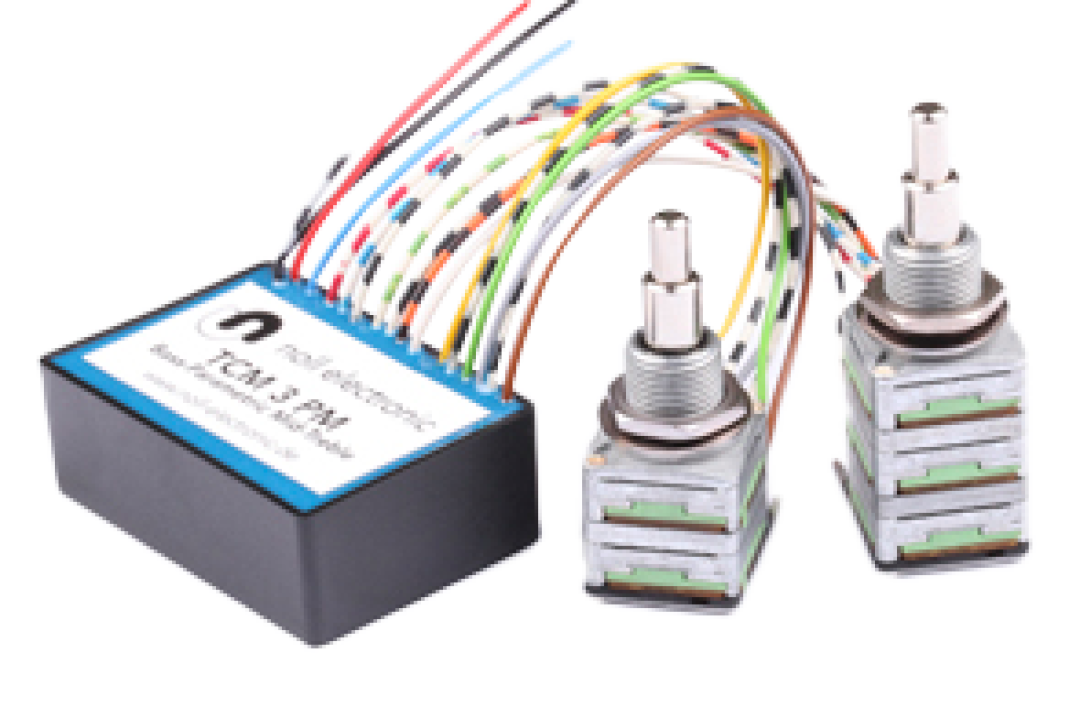

Noll TCM 3 PM
Noll’s TCM 3 PM is a compact equalizer, priving with an easy and compact installation. The secure insulation of the sealed equalizer perfectly protects other electrical components. Bass, mids and treble controls are center-detented and allow 15 dB of boost and cut with a gentle slope of 6 dB per octave, which results in a natural and true sound. The top feature of this preamp is a parametric mid range control with adjustable frequency range from 280 Hz to 1,5 kHz.
The equalizer is powered by a 9 Volt battery - adding an additional 9 Volt battery (18 V) will ensure more headroom and a longer battery life.
It can be combined with both active and passive pickups.
All units are prewired with high flexible cables, delivery contents all pots, an input jack and a battery clip - knobs are not included.
Potentiometers have 6 mm solid shafts. Stacked ones come with 4mm (upper) and 6 mm (lower) solid shafts.
An additional MixPot option allows to combine high impedance piezo with magnetic pickups. Further custom configurations are available.
• Input Sensitivity: max. 450 mV @ 9 V
• Output Voltage: max. 4,5 V @ 9 V
• S-N-Ratio: 95 dB (1 KHz/5 Vss)
• Bass: +/- 15 dB @ 40 Hz
• Mids: +/- 15dB @ 280 Hz to 1,5 KHz
• Treble: +/- 15 dB @ 4,2 kHz
• Operating Voltage: + 9 V (+ 18 V optional)
• Power Consumption: typ. 0,8 mA @ 9 V / 600 h batt. life
• Dimensions: 45x30x16 mm
