NTBT 2-Band EQ Preamp Module
NTBT 2-Band EQ Preamp Module
The NTBT is a 2-band tone control preamp with fully independent Bass and Treble controls. The voice is clear, transparent, and strong with ultra-low distortion.
The NTBT features a pre-wired adjustable gain trimmer which allows you to boost the input signal up to 12dB (4X) to match the output of other instruments or tune the output to drive your level-sensitive effects.
Like all of our preamps, the NTBT is internally shielded to reject electromagnetic noise and includes internal filters to block AM and FM radio on the input. Bartolini set the standard of fully sealing the sensitive electronics. We use professional double tin plated pure copper wire with durable semi-rigid insulation. This ensures the 5” pre-stripped wires don’t flop around in the cavity and the wires don’t cut through the insulation over time.
Installation is straightforward by connecting the EQ band wires to your 50KΩ linear potentiometers along with volume control, battery connection, and output jack. Or you can use one of our pre-wired harnesses to make your upgrade even easier.
The preamp can be used with either a single 9-volt battery (9-volt operation) or two 9-volt batteries wired in series (18-volt operation) for 6dB extra headroom with no tonal change.

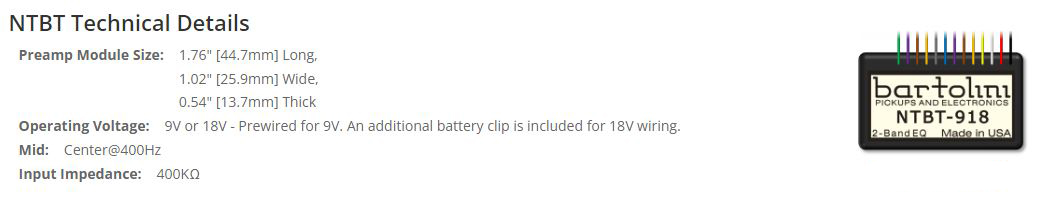

• 2-band tone control preamp
• Clear, transparent, and strong with ultra-low distortion voice
• Independent bass and treble control with adjustable gain
• Preamp Module Size 1.76" [44.7mm] Long, 1.02" [25.9mm] Wide, 0.54" [13.7mm] Thick
• Operating Voltage: 9V or 18V
• Mid: Center@400Hz
• Input Impedance: 400KΩ
Wiring Diagram
The NTBT is a 2-band tone control preamp with fully independent Bass and Treble controls. The voice is clear, transparent, and strong with ultra-low distortion.
The NTBT features a pre-wired adjustable gain trimmer which allows you to boost the input signal up to 12dB (4X) to match the output of other instruments or tune the output to drive your level-sensitive effects.
Like all of our preamps, the NTBT is internally shielded to reject electromagnetic noise and includes internal filters to block AM and FM radio on the input. Bartolini set the standard of fully sealing the sensitive electronics. We use professional double tin plated pure copper wire with durable semi-rigid insulation. This ensures the 5” pre-stripped wires don’t flop around in the cavity and the wires don’t cut through the insulation over time.
Installation is straightforward by connecting the EQ band wires to your 50KΩ linear potentiometers along with volume control, battery connection, and output jack. Or you can use one of our pre-wired harnesses to make your upgrade even easier.
The preamp can be used with either a single 9-volt battery (9-volt operation) or two 9-volt batteries wired in series (18-volt operation) for 6dB extra headroom with no tonal change.
• 2-band tone control preamp
• Clear, transparent, and strong with ultra-low distortion voice
• Independent bass and treble control with adjustable gain
• Preamp Module Size 1.76" [44.7mm] Long, 1.02" [25.9mm] Wide, 0.54" [13.7mm] Thick
• Operating Voltage: 9V or 18V
• Mid: Center@400Hz
• Input Impedance: 400KΩ
Wiring Diagram
