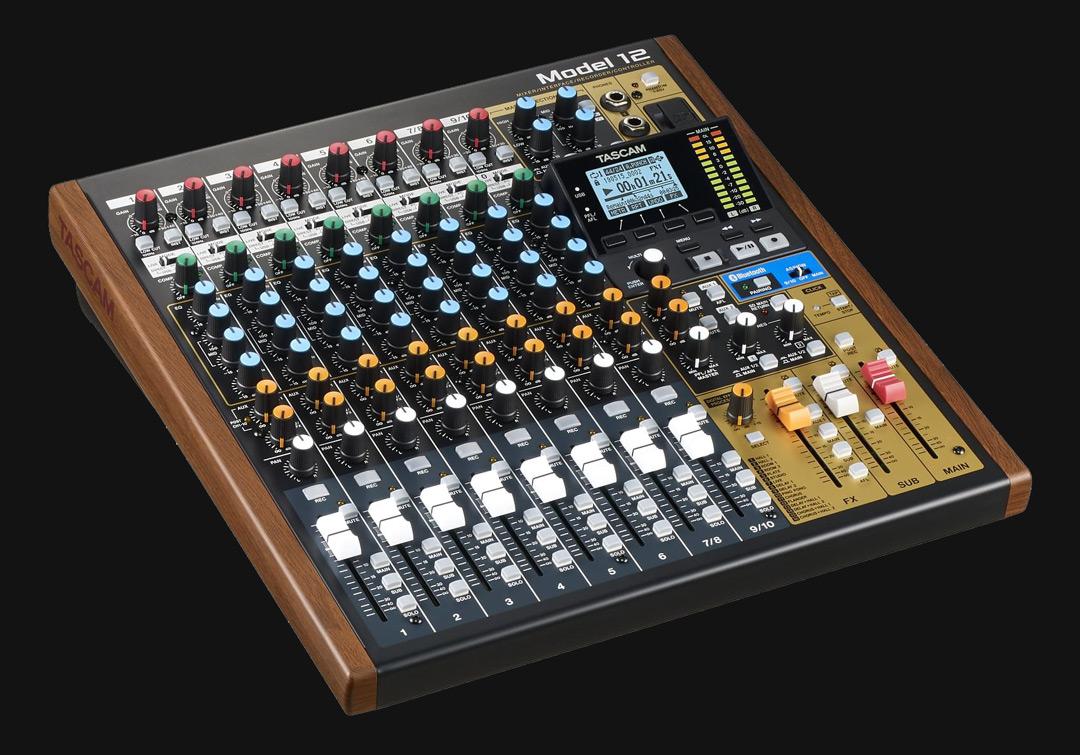

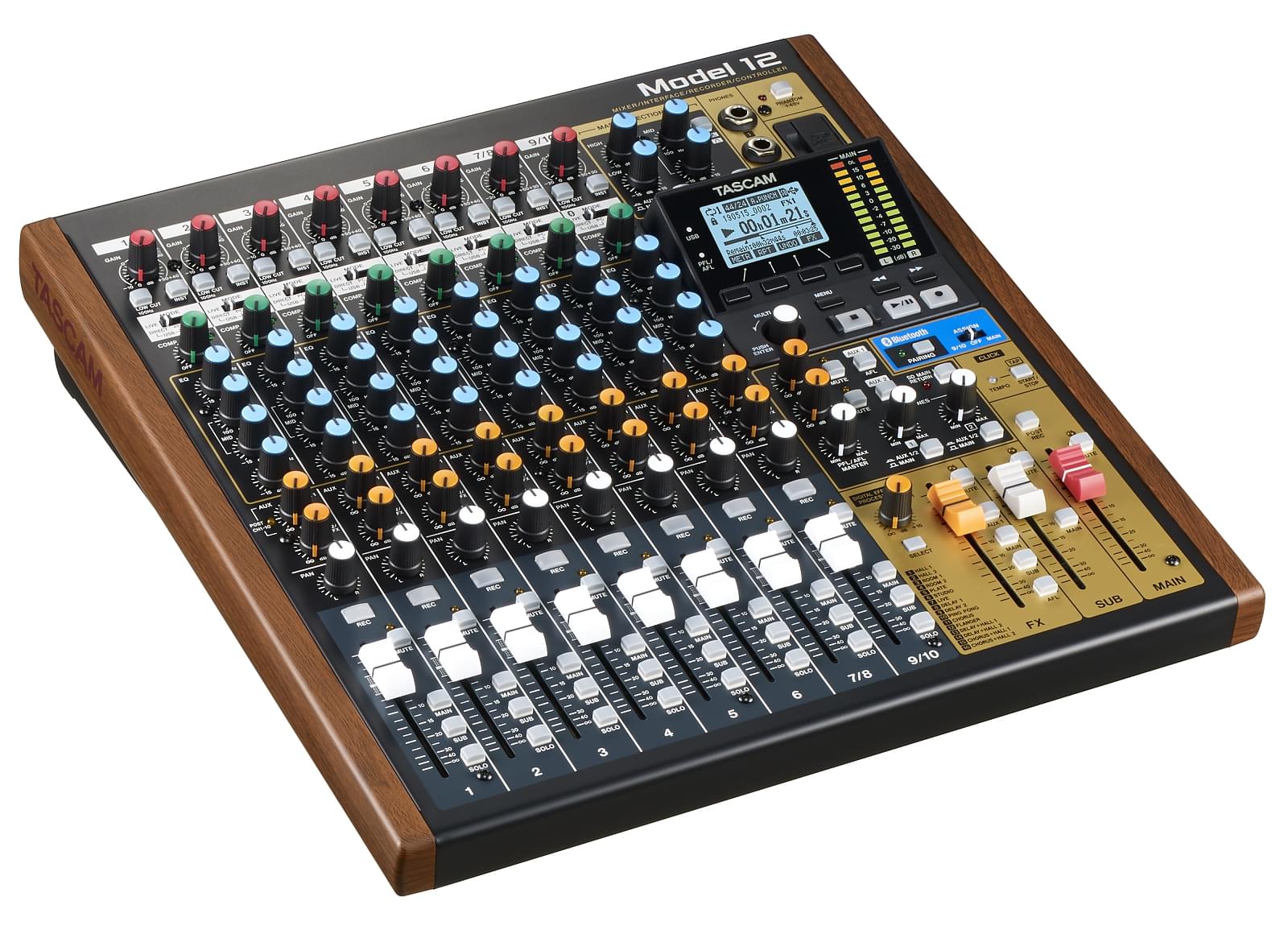

Tascam Model 12
• Mixer
• With multi-track recorder, audio interface and DAW control functions
• 10-Channel mixer
• 12-Track recording in WAV/BWF format onto SD/SDHC/SDXC cards up to 128 GB possible
• 44.1 / 48 KHz
• 16 / 24 Bit
• 1-Button compressor for all input channels
• Switchable low-cut
• 3-Band EQ with tunable mids for all mono channels
• Master EQ
• Overdub recording
• Punch-in/out
• Integrated audio interface for 12 channels (10 inputs plus stereo sum)
• LCD display
• 12-Segment LED meter
• Integrated effects processor
• Switchable phantom power +48 V
• Power adapter included
• Dimensions: 343 x 99 x 360 mm (W x H x D)
• Weight: 4.3 kg
Connectors
• 8 x Microphone/Line input combo XLR/jack 6.3 mm (channels 1-6, 7, 9 can be used as instrument inputs)
• 2 x Line output XLR
• 2 x Sub-output 6.3 mm jack
• 2x AUX output: 6.3 mm jack
• 2 x Insert 6.3 mm jack (channel 1 + 2)
• Footswitch input: 6.3 mm jack
• Click output 6.3 mm jack with tap tempo function
• 2x Stereo headphone output: 6.3 mm jack
• MIDI input and output
• USB
