NTMB+F 3-Band EQ Preamp Module
NTMB+F 3-Band EQ Preamp Module
Our most popular preamp for decades, the NTMB+F is a 3-band tone control preamp with fully independent Bass, Mid and Treble controls. It is well known to professionals for its very low noise and wide boost/cut range. The voice is clear, transparent, and strong with ultra-low distortion.
We re-packed the parts of the NTMB/918F and NTMB3 2-part preamp system into a single module to make the NTMB+F. The circuitry and parts are identical. Not only does the NTMB+F take less space, but it also requires fewer wires, has even better noise rejection, and is easier to install.
The NTMB+F features a pre-wired adjustable gain trimmer which allows you to boost the input signal up to 12dB (4X) to match the output of several instruments or tune the output to drive your level-sensitive effects.
Like all of our preamps, the NTMB+F is internally shielded to reject electromagnetic noise and includes internal filters to block AM and FM radio on the input. Bartolini set the standard of fully sealing the sensitive electronics. We use professional double tin plated pure copper wire with durable semi-rigid insulation. This ensures the 5” pre-stripped wires don’t flop around in the cavity and the wires don’t cut through the insulation over time.
Installation is straightforward by connecting the EQ band wires to your 50KΩ linear potentiometers along with volume control, battery connection, and output jack. Or you can use one of our pre-wired harnesses to make your upgrade even easier.
The preamp can be used with either a single 9-volt battery (9-volt operation) or two 9-volt batteries wired in series (18-volt operation) for 6dB extra headroom with no tonal change.
• 3-band tone control preamp
• Clear, transparent, and strong with ultra-low distortion voice
• Independent Bass, Mid and Treble controls

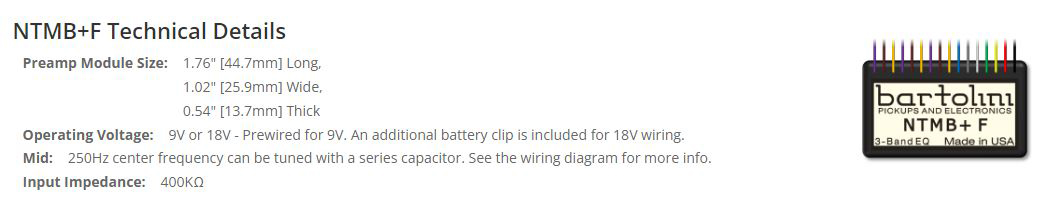

• Preamp Module Size 1.76" [44.7mm] Long, 1.02" [25.9mm] Wide, 0.54" [13.7mm] Thick
• Operating Voltage: 9V or 18V
• Mid: 250Hz center frequency can be tuned with a series capacitor
• Input Impedance: 400KΩ
Wiring Diagram
