Aguilar OBP-3

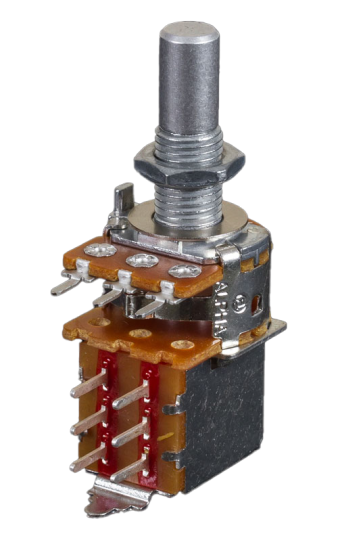

The OBP-3 is Aguilar's most flexible onboard preamp design - providing with +/-18 dB of cut and boost at 40 Hz, +/- 16 dB of cut and boost at either 400 Hz or 800 Hz and +/- 16 dB of treble cut and boost at 6.5 kHz. The OBP-3 has multiple wiring options and can be compatible with either a push/pull pot, mini-toggle or an internal DIP-switch for a mid range frequency selection.
• Bass control: +/- 18 dB @ 40 Hz
• Mid control: +/- 6 dB @ 400Hz or 800 Hz. User selectable frequency center.
• Treble control: +/- 16 dB @ 6,5 kHz
• Distortion: .019 into 10 kOhms load
• Output impedance: 100 Ohms at 9 or 18 V operation. Additional 6 dB with 18 V
• Noise: 95 dBm unweighted
• Battery life: 324 hours
• Wire lead length: 6.50'' / 16,51 cm
• Set without potentiometers
