The Double NFP Jazzplate is just an easy way for Jazz bass players to have the Double NFP filter sound on their instruments in an easy and quick way to install.
The Double NFP Jazzplate is solderless and it should fit on most Jazz basses on the market without any modification to the routing cavity. Unlike the single version, the output Jack needs to be mounted to the instrument’s body, so, modifications to the instrument might be required.

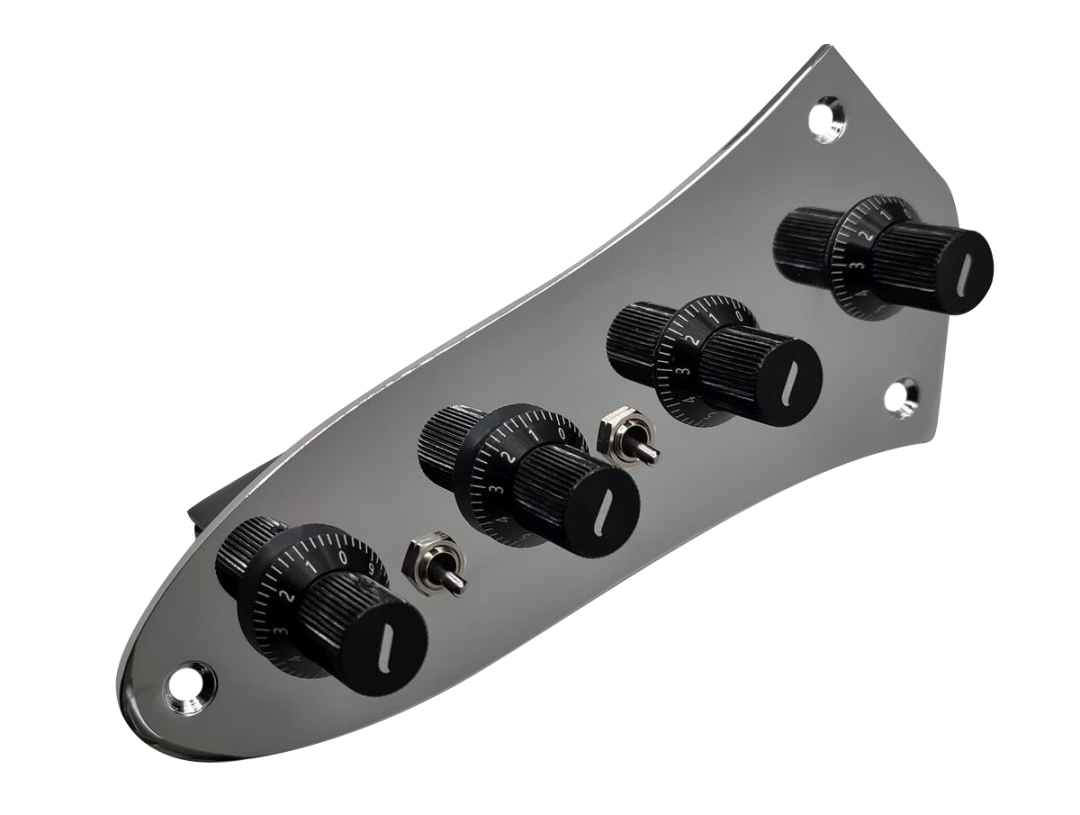

The control plate keeps its traditional configuration of Neck Vol and Bridge Vol that is always in the circuit. It has a Passive/Active switch and 2x Filters, one per pickup. Each Filter acts as a second-order Lowpass filter with a resonant peak on its cut-off point (4khz) and the potentiometers allow you to sweep from 100hz to 4Khz on the Neck, and 240Hz to 4Khz on the Bridge.
Also, a new feature, not shown in the picture, is a 3-way passive Tone switch (as featured on our 800TS Jazzbass preamps). This switch allows for adding two levels of high cut on your signal, acting as a passive tone control, just without a potentiometer. This feature works in passive mode only.
This is a great new way for you to get experimental with your instrument and stand out from the crowd and make your Tone, Your Tone.
The Filters are push-pull to activate a boost on the resonant peak of each preamp.
• Operation: 9v to 27v
• Current Draw: +- 4.5 mAh (at 9v)
• Neck: 100hz to 4Khz, Bridge: 240Hz to 4Khz
• All our preamps are solderless!
